Servo Motors

FMAEX Series

Product Features

Low inertia motor

Motor speed from low to high

Various outputs from 0.2 to 4kW

200/400VAC power supply

Application examples : Painting equipment, roll-to-roll

Notation Format
Specification Sheet
Motor[FMA] EX02 EK05 EC06 EK06 EC08
Drive
[FDA70 _ EX]
[EDA70 _ EX]		 02 05
Flange Size(ㅁ) 70 90
Rated Power (W) 200 450 600 550 800
Rated Current (A, rms) 1.8 3.21 3.5 3.7 4.65
Momentary Maximum Current (A, rms) 5.4 9.3 10.5 10.7 12.54
Rated Torque (N • m) 0.64 2.15 1.91 2.57 2.54
(kgf • cm) 6.5 21.9 19.5 26.2 26
Momentary Maximum Torque (N • m) 1.92 6.45 5.3 7.42 6.85
(kgf • cm) 19.5 65.7 54.5 72.7 70.2
Rated Rotation Speed (r/min) 3000 2000 3000 2000 3000
Maximum Rotation Speed (r/min) 5000 3000 5000 3000 5000
Rotor Inertia
(=GD²/4)		 (gf • cm • s²) 0.251 1.5 1.5 1.77 1.77
(kg • m² • 10⁻⁴) 0.246 1.47 1.47 1.74 1.74
Permissible Load Inertia Ratio (relative to rotor) Up to 15 times Up to 20 times
Rated Power Rate (kW/s) 16.5 31.3 24.8 38 37.4
Detector Type INC. 2000펄스 17bit (131072펄스)
ABS. 17bit (131072펄스)
브레이크 적용불가
Weight (kg) 2.8 4.26 4.26 5 5.5
Motor[FMA] EL09 ET13 EK16 EC22 ET20 EK30 EC40
Drive
[FDA70 _ EX]
[EDA70 _ EX]		 10 15 15 20 20 30 45
Flange Size(ㅁ) 150
Rated Power (W) 900 1300 1600 2200 1800 3000 4000
Rated Current (A, rms) 7.3 10.9 10.2 12.1 16.4 20.6 16.5
Momentary Maximum Current (A, rms) 18.76 29.65 30.3 36.3 49.2 61.9 41.6
Rated Torque (N • m) 8.6 8.27 7.64 7 11.5 14.3 12.7
(kgf • cm) 87.7 84.4 77.9 71.4 117 145.86 129.54
Momentary Maximum Torque (N • m) 22.1 22.5 22.5 21 34.5 43 31.8
(kgf • cm) 226 230 230 214 351 438.6 324.36
Rated Rotation Speed (r/min) 1000 1500 2000 3000 1500 2000 3000
Maximum Rotation Speed (r/min) 2000 3000 3000 5000 3000 5000 4500
Rotor Inertia (gf • cm • s²) 11.12 11.12 11.12 11.12 22.4 22.4 22.4
(kg • m² • 10⁻⁴) 10.9 10.9 10.9 10.9 22 22 22
Permissible Load Inertia Ratio (relative to rotor) Up to 10 times
Rated Power Rate (kW/s) 68.2 62.8 53.5 45.1 51.5 91.3 72
Detector Type INC. 17bit (131072펄스)
ABS. 17bit (131072펄스)
브레이크 DC 24[V]
Weight (kg) 22 22 22 22 30 30 30
Motor[HMA] ET13 EK16 EC22 ET20 EK30 EC40
Drive
[FDA70__H_EX]
[EDA70__H_EX]		 20 30 45
Flange Size(ㅁ) 150
Rated Power (W) 1300 1600 2200 1800 3000 4000
Rated Current (A, rms) 8.7 8.2 9.7 13.1 16.5 13.2
Momentary Maximum Current (A, rms) 26 25 29.2 40.5 51 33.1
Rated Torque (N • m) 8.27 7.64 7 11.5 14.3 12.7
(kgf • cm) 84.4 77.9 71.4 117 145.86 129.54
Momentary Maximum Torque (N • m) 22.5 22.5 21 34.5 43 31.8
(kgf • cm) 230 230 214 351 438.6 324.36
Rated Rotation Speed (r/min) 1500 2000 3000 1500 2000 3000
Maximum Rotation Speed (r/min) 3000 3000 5000 3000 5000 4500
Rotor Inertia (gf • cm • s²) 11.12 11.12 11.12 22.4 22.4 22.4
(kg • m² • 10⁻⁴) 10.9 10.9 10.9 22 22 22
Permissible Load Inertia Ratio (relative to rotor) Up to 10 times
Rated Power Rate (kW/s) 62.8 53.5 45.1 51.5 91.3 76
Detector Type INC. 17bit (131072펄스)
ABS. 17bit (131072펄스)
브레이크 DC 24[V]
Weight (kg) 22 22 22 30 30 30
Characteristics
Certification
T1
(450℃)		 T2
(300℃)		 T3
(200℃)		 T4
(135℃)
ⅡA
  • Acetone
  • Benzene
  • Ammonia
  • Methanol
  • Ethane
  • Toluene
  • Propane
  • Methane
  • Acetic acid
  • Ethanol
  • Butanol
  • Butane
  • Methyl methacrylate
  • Gasoline
  • Hexane
  • Pentane
  • Acetaldehyde
  • Trimethylamine
ⅡB
  • Acrylonitrile
  • Hydrogen cyanide
  • Cydlopropane
  • Coke-oven gas
  • Ethylene
  • Ethylene oxide
  • Ethyl acrylate
  • Acrylic aldehyde
  • Dimethyl ether
  • Ethyl methyl ether
  • Diethyl ether

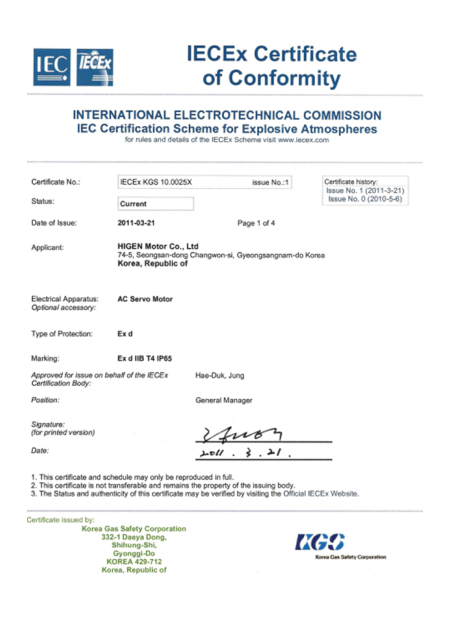

  • IECEx

    IECEx

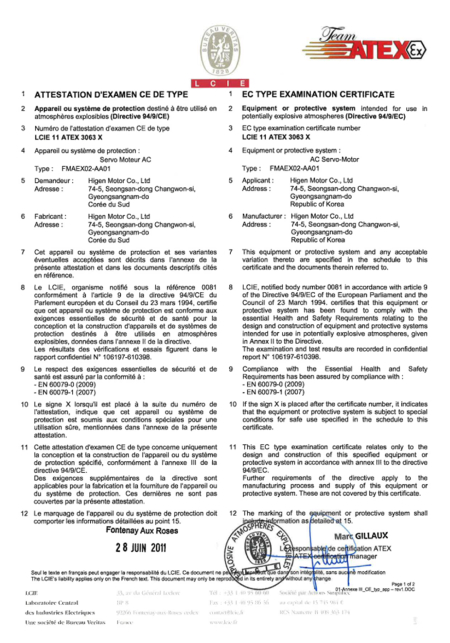

  • ATEX

    ATEX

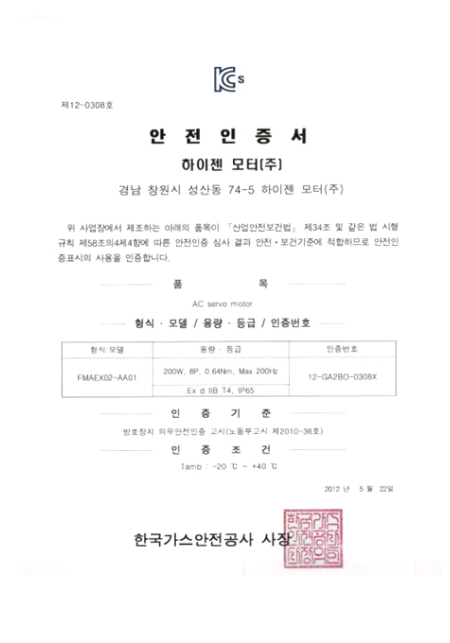

  • KCs

    KCs
